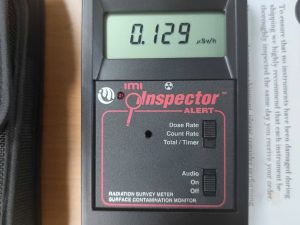

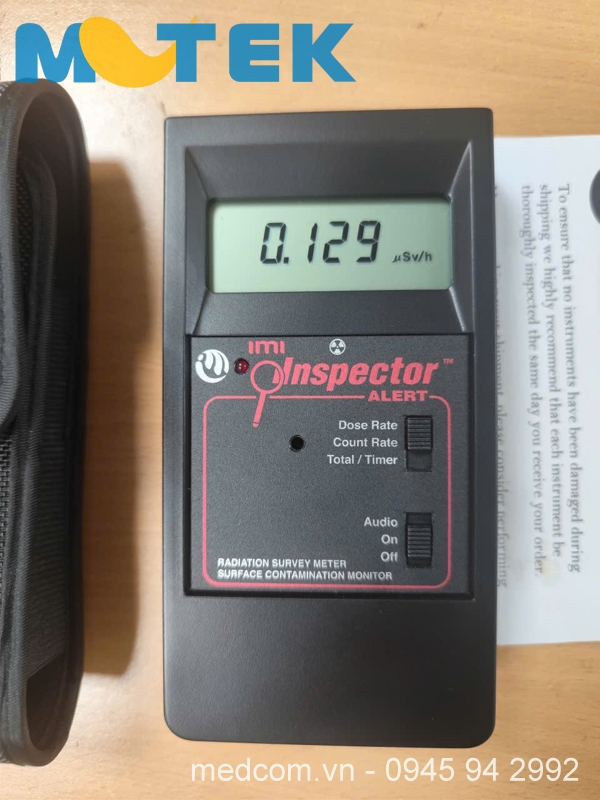

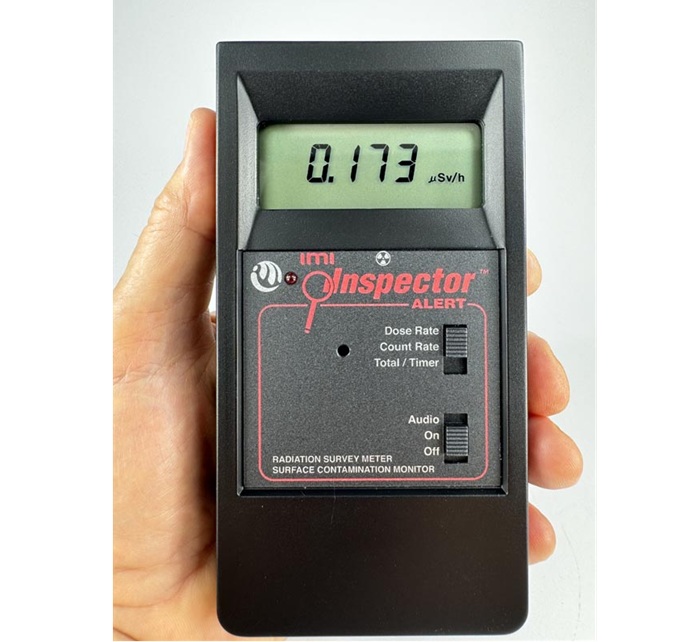

Máy đo phóng xạ điện tử hiện số Medcom inspector Alert BLE

Model: Inspector Alert BLE

Hãng sản xuất: INTERNATIONAL MEDCOM – MỸ

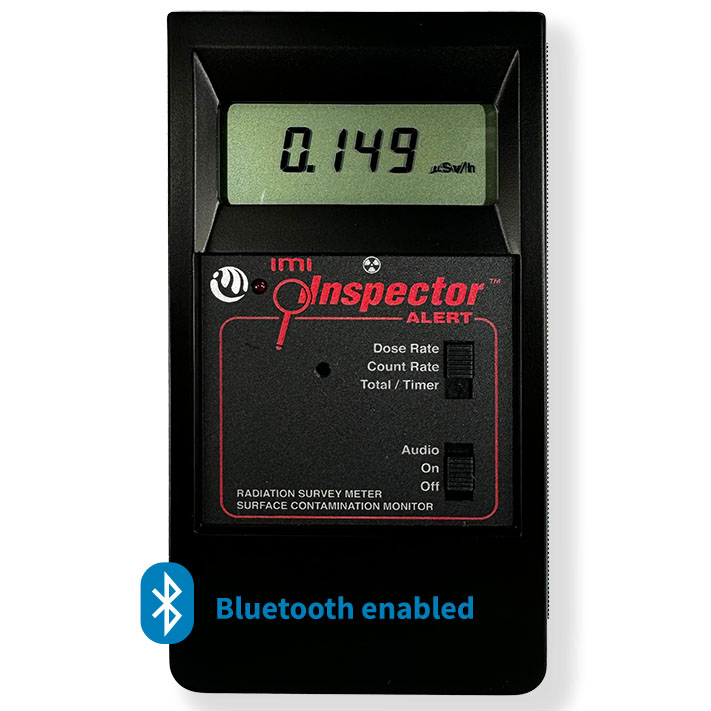

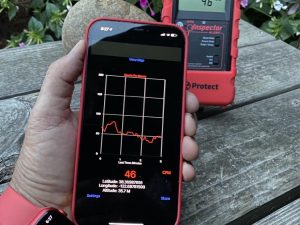

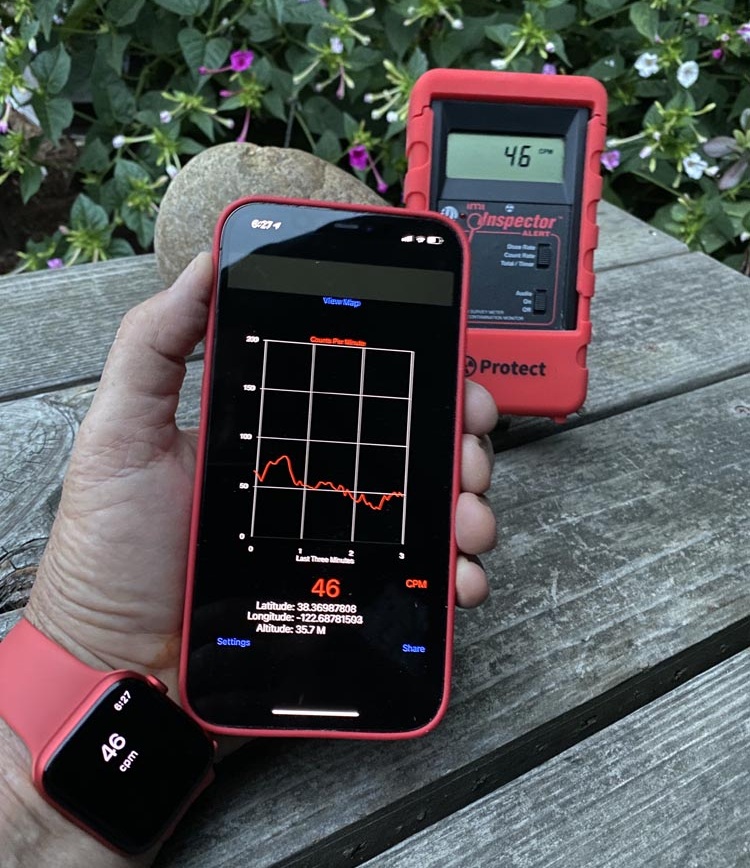

The Inspector BLE is essentially the same instrument as our popular Inspector Alert, except that it also contains a blue tooth low energy module that is activated with a switch in the battery compartment.  When activated the instrument will pair with iPhones, iPads and Android phones and tablets.

Sensor: Halogen-quenched Geiger-Mueller tube. Effective diameter 1.75″ (45 mm). Mica window density 1.5-2.0 mg/cm²

Display: 4-digit liquid crystal display with mode indicators

Accuracy: ± 10% typical; ±15% maximum

Alert: µSv/hr: 0 to 500; mR/hr: 0 to 50; CPM: 0 to 160,000; Beeper sounds the alert

Anti-Saturation: Readout holds at full scale in fields up to 100 times the maximum reading

Audio: Beeper chirps with each radiation event (can be muted)

Averaging Periods: Display updates every 3 seconds, showing the average for the past 30-second time period at normal levels. The averaging period decreases as the radiation level increases.

Certifications: CE Certified: Emissions: EN 55011:98 + A2 (Class B emissions limits); EN 61326:06 (Class B) RF Emissions Immunity: EN 61326:06 (Annex C) Portable Test and Measurement Equipment; EN 61000-4-2:95 (ESD); EN 61000-4-3: 97; RoHS Compliant, Meets WEEE standards, and ISO 9001:2001 & ISO 14001

Count Light: Red LED flashes with each count

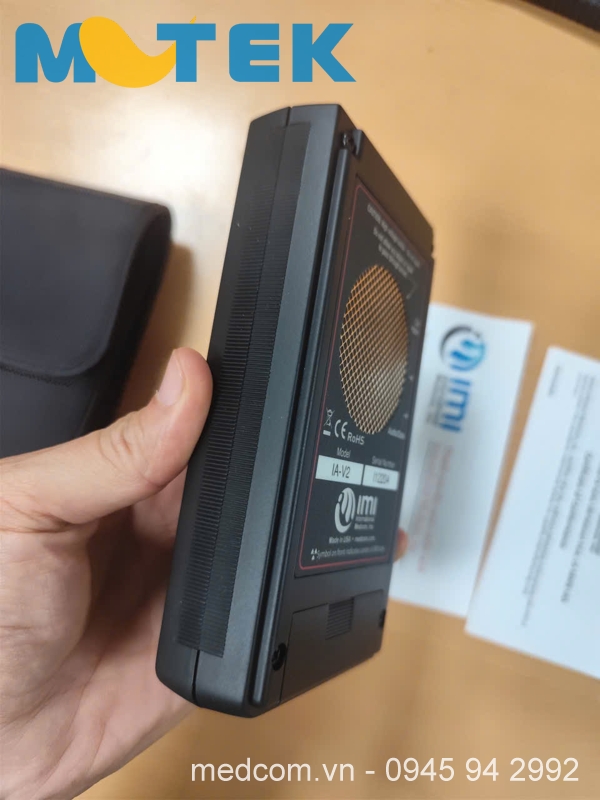

Detector: Halogen-quenched Geiger-Mueller tube. Effective diameter 1.75″ (45 mm). Mica window density 1.5-2.0 mg/cm² Detects Alpha, Beta, Gamma, and X-radiation

Typical Efficiency: For 4 pi at contact

Beta C-14 (49 keV avg. 156 keV max.): 5.3% Bi-210 (390 keV avg. 1.2 MeV max.): 32% Sr-90 (546 keV and 2.3 MeV): 38% P-32 (693 keV avg. 1.7 MeV max.): 33%

Alpha Am-241 (5.5 MeV): 18%

Gamma Sensitivity: 3500 CPM/mR/hr referenced to Cs-137 Smallest detectable level for I-125 is .02 mCi at contact

Manual: IMI Inspector Alert™ V2 Surface Contamination Meter

Operating Range: µSv/hr: .01 to 1,100 mR/hr: .001 to 110 CPM: 0 to 350,000 CPS: 0 to 5,000 Total: 1 to 9,999,000 counts

Options: Computer software and cable available

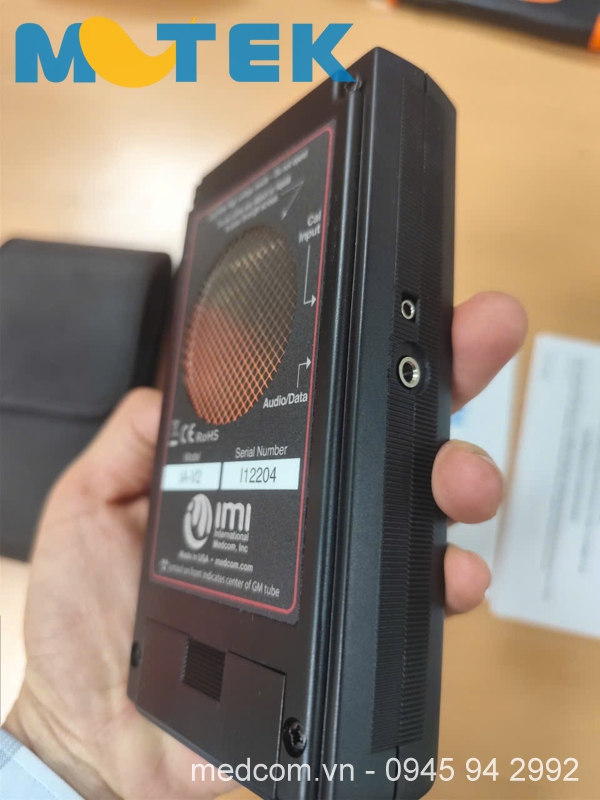

Ports: Output: Stereo 3.5 mm jack sends counts to computers, data loggers, other CMOS-compatible devices, earphones, and educational data collection systems. 0-9 V, 1 kOhm impedance. Input: 2.5 mm mono jack provides calibration input. 0-3.3 V, > 5 µs width, rising edge triggered.

Power: One 9-volt alkaline battery or one AA battery; battery life is typically over 2,000 hours at normal background radiation levels at sea level. Battery life decreases as radiation level rises.  Battery life will be reduced when blue tooth is activated, but will still typically exceed 1,000 hours of continuous use.

Size: 150 x 80 x 30 mm (5.9″ x 3.2″ x 1.2″)

Temperature Range: -20º to +50º C , -4º to +122º F

Timer: Can set sampling periods of 1 minute to 40 hours.

Weight: 323 grams (11.4 oz) including battery
